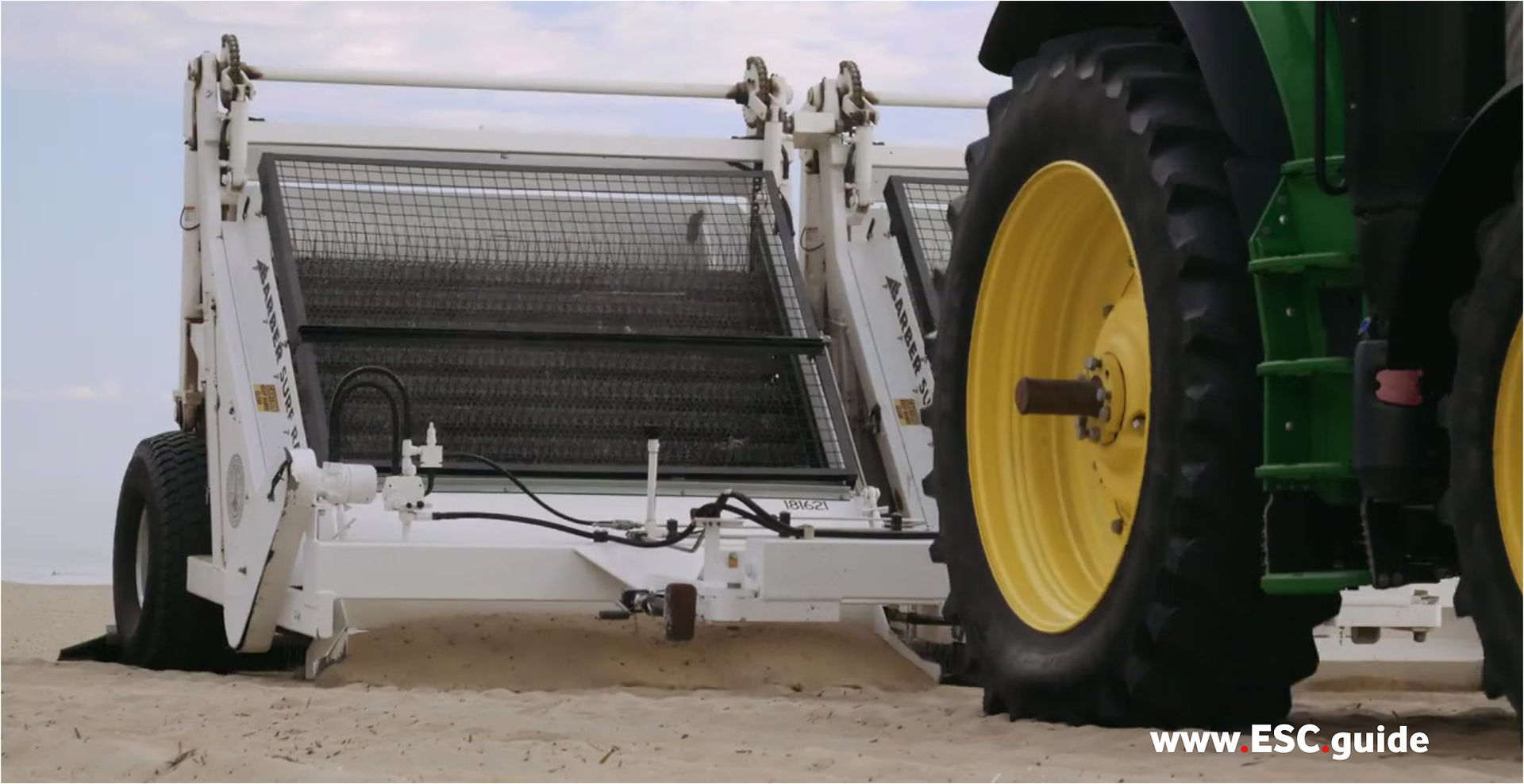

This beach cleaning machine more than doubles the cleaning capacity of typical 'large' beach cleaning machines, so municipalities can clean massive beaches in a fraction of the time of the fastest beach cleaning machines.
Designed specifically for municipalities with large public beaches and high volume, the SURF RAKE 600XL two 600HD units, while maintaining their original speed and maneuverability.
More Information: https://www.esc.guide/hbarber
SPECIFICATIONS
Operating Speed: | Up to 15 miles per hour |
Cleaning Width: | 15 feet |
Cleaning Depth: | Adjustable to 6” |
Performance: | Cleans up to 15 acres per hour |
Hydraulic Drive: | Completely sealed and protected by full flow filter. Large capacity spline mounted cast iron pump, hydraulic motor, flow control, and built-in overflow protection. |
Conveyor: | Of bar flight type with chain and sprocket drive, 12 foot wide NBR belts, which will not stretch or corrode. |
Tines: | Stainless steel double torsion design |
Hopper Capacity: | 6 cubic yards (9,000 lbs) |
Dump Clearance: | 9 feet |
Moldboard: | A moldboard deflector plate is positioned at the front of the machine to ensure an even cleaning. |
Dimensions: | Height: 7’ 8” Length: 17’ 1” Width: 15’ 6” |
Weight: | 8,000 lbs |
Paint: | Dupont IMRON Polyurethane enamel |
Finishing Attachment: | To smooth the sand and eliminate tire marks for a minimum 16 foot wide path - optional. |
Galvanization: | All frame and body parts Hot Dip Galvanized - optional. |
Tractor Requirements: | 110 PTO horsepower 4 wheel-drive agricultural type tractor with a minimum of 18.4” x 34” rear tires (18.4” x 38” rear tires preferred). |
Debris Removed: | Broken glass, plastic, syringes, cigarette butts, pop-tops, straws, cans, tar balls, stones 3/8” to 4” in diameter, sea grass, sea weed, fish, small pieces of wood. |
PRICELIST
Model 600XL (Dual Unit): | $160,000.00 |
600GALXL Hot Dip Galvanizing: | $11,000.00 |
530AS02XL Finisher Assembly Automatic: | $5,900.00 |
522AS03XL Hydraulic Moldboard: | $9,600.00 |
6XL-LIGHTS Light Assembly: | $2,800.00 |
